Supplement - Modelling Populations of Interaction Networks - Data on the Lake 2022

George Bolt - g.bolt@lancaster.ac.uk - https://gmbolt.github.io

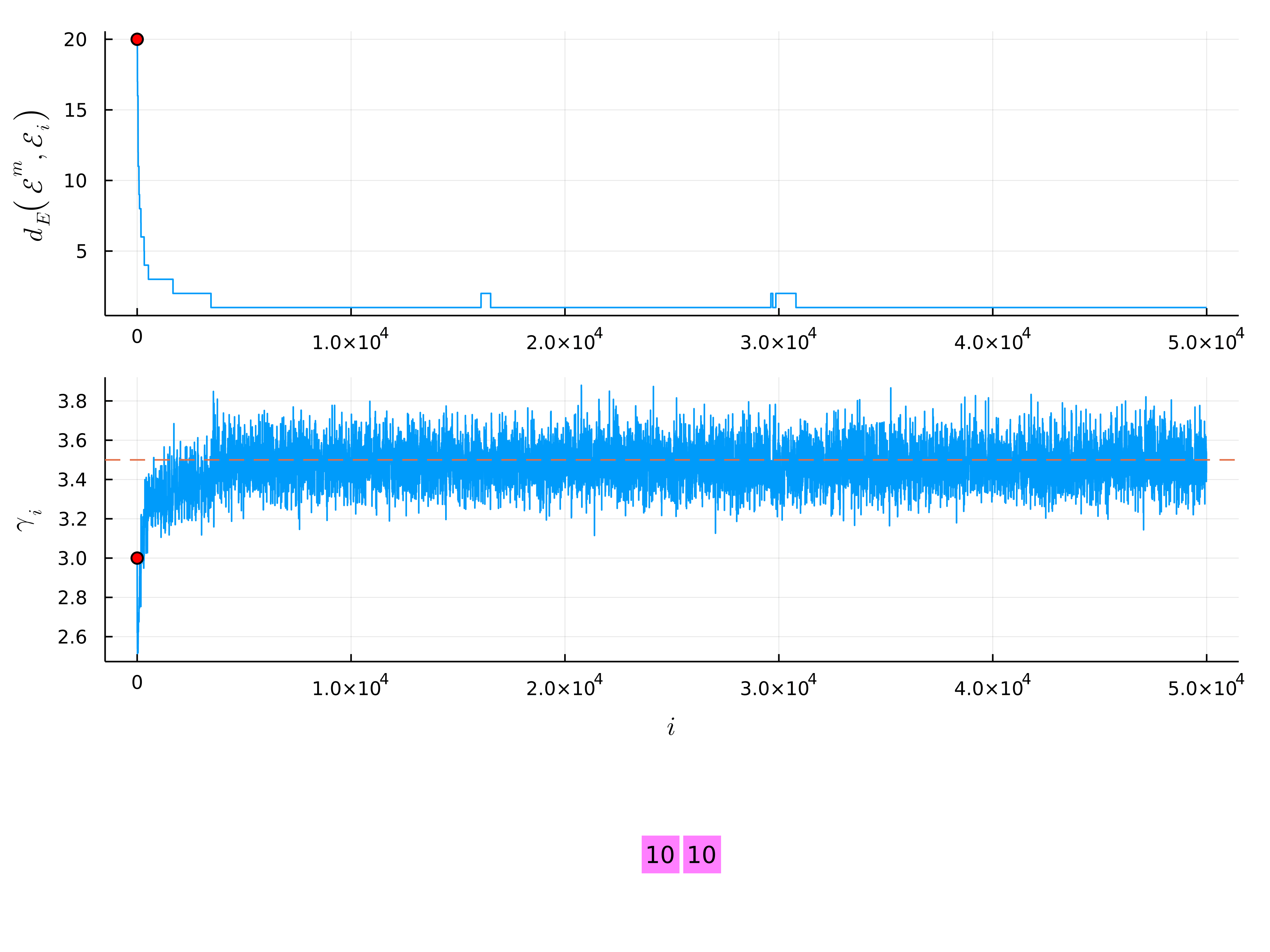

• Animation shows multiset of paths (big gaps indicate distinct paths) corresponding to marker on traceplots;
• Green entries are common with mode, whilst magenta entries highlight errors;
• Simulation parameters
  • $\mathcal{E}^m$ = ((1,2,1), (1,3,2,1,4), (1,2,4), (1,5,1), (1,5), (2,1))
  • $\gamma=3.5$
  • $n=25$
  • $d_E(\cdot, \cdot)$ taken as matching distance (defined on posterior), with distance between paths based upon common subsequences
• Initialised MCMC chain at $\mathcal{E}_0 = ((10,10))$ and $\gamma_0=3.0$.

Data

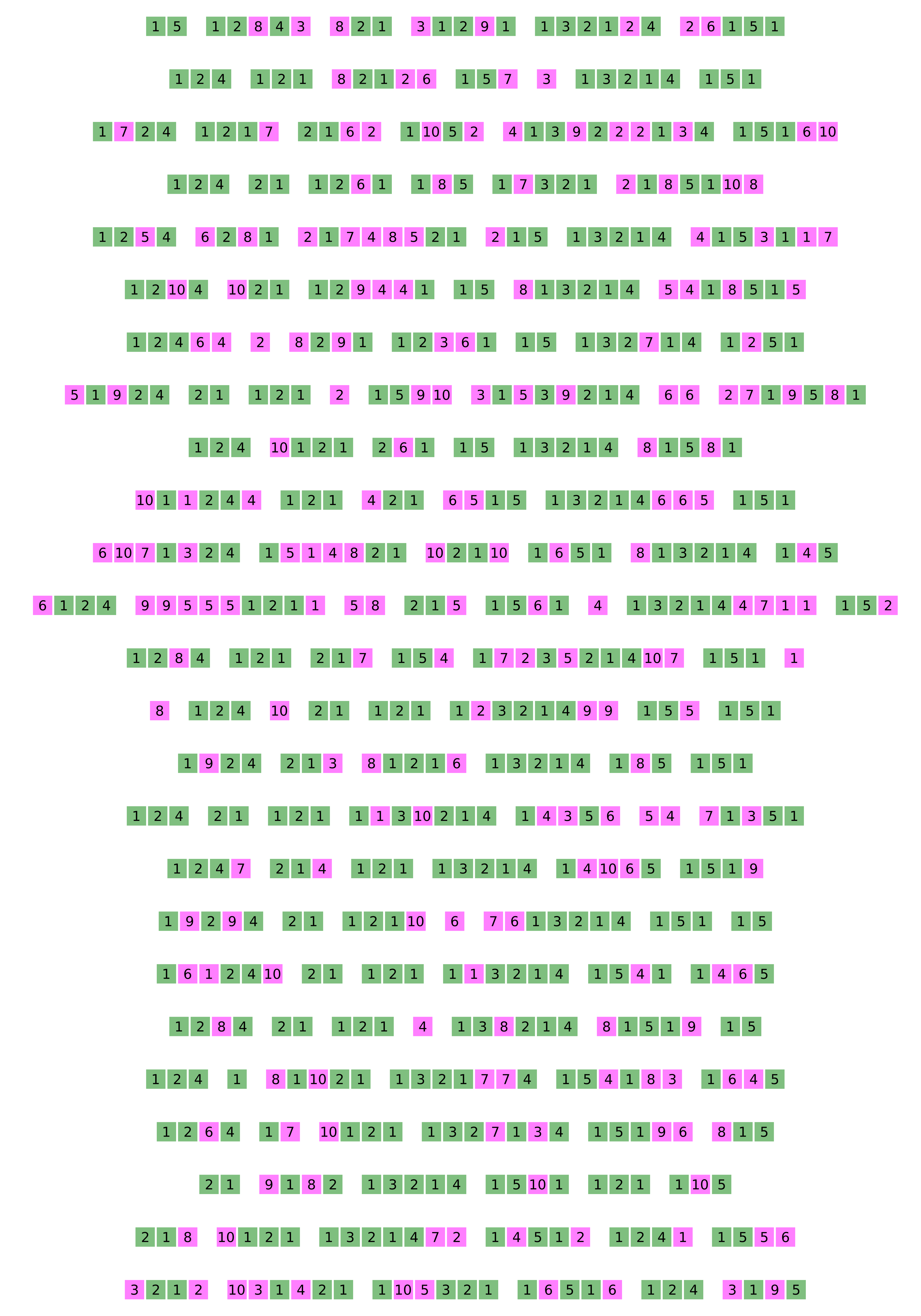

• Below is the $n=25$ observations $\{\mathcal{E}^{(i)}\}_{i=1}^n$ used in this simulated example, drawn from an $\text{SIM}(\mathcal{E}^m, \gamma)$ model (approximately via MCMC algorithm);
• Green entries are common with the mode $\mathcal{E}^m$, whilst pink entries highlight errors.
